About AirSENCE
Introducing AirSENCE an Advanced, Accurate & Affordable Micro-Monitoring System for continuous ambient air quality monitoring and mapping. Nowadays monitoring air quality only at limited locations is no longer sufficient in modern cities. Increased urbanization, vehicular density, infrastructure development and industrialization have intensified pollution levels around the world resulting in elevated premature death rates in adults as well as in children.
Mapping local air quality is quickly becoming an essential requirement for cities and industrial areas as it provides high spatial and temporal resolution of air pollutant concentrations. This high-resolution data enable authorities to trace the sources of pollution and formulate effective strategies to curb its impact.
AirSENCE is the ideal solution for any air quality monitoring and mapping applications with its advanced features, accurate results and affordable pricing. AirSENCE is a commercial success is rooted in its strong academic research base. AirSENCE is developed in collaboration with the Southern Ontario Centre for Atmospheric Aerosols Research (SOCAAR) at the University of Toronto.
AirSENCE incorporates both electrochemical and optical sensors that have high “sensitivity, selectivity and long-life” which when combined with robust machine learning-based signal processing and data fusion, provides an “Industrial Internet of Things (IIoT)” sensor network.

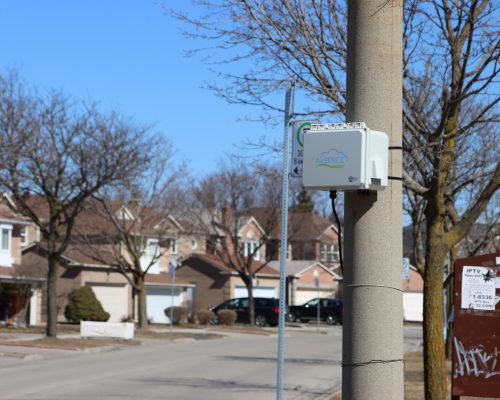

One of the major advantages of AirSENCE is its portability. Small footprint (23.9cm (H) x 32.2cm (W) x 17.7cm (D)) and light-weight (2.2 Kg) enables it to be installed in-situ at varied monitored sites e.g. on signal poles at traffic intersections or light poles at road dividers etc. This delivers reliable data and provides highly representative pollutants mapping for the areas monitored. IP65 rated weatherproof polycarbonate enclosure allows AirSENCE to operate in any harsh environmental conditions.
AirSENCE has a unique proprietary sensor layout design which when combined with active sampling and optimal internal space, provides multiple advantages. First and foremost, it ensures consistent performance even in presence of high pollutant concentrations. In addition, AirSENCE includes AUG’s proprietary algorithms that ensure accurate data generation even as sensors ages over time, thus providing a sensors life expectancy of more than 2 years.
AirSENCE has minimal installation requirements & procedures which includes insertion of local SIM and attaching power cable. Every AirSENCE device is calibrated using the factual procedure of reference collocation at calibration before shipment. AirSENCE has minimal maintenance protocols and does not require routine replacements of consumables.
Most importantly every AirSENCE device is equipped with an onboard embedded microcomputer that converts sensor signals to pollutant concentrations and weather data (polished data) within the device and transmits polished data to a cloud server this ensures complete data integrity. AirSENCE has built in a 32GB SD card that stores several year’s worth of data and an auto-sync mechanism to recover data from network disruption. AirSENCE provides an affordable, user-friendly, and highly accurate air quality Micro-monitoring solution.
AirSENCE Salient Features
ACCURATE DATA:
Data generated by AirSENCE has high correlation with reference system data.
HIGH RESOLUTION DATA:
AirSENCE provides high temporal resolution by generating continuous real-time data at every minute. User can acquire data with higher time intervals depending on their requirements.
TINY FOOTPRINT:
AirSENCE is small and light weight making it portable and easy to install.
ANYWHERE INSTALLATION:
AirSENCE can be installed on a pole or any vertical surfaces.
LOW POWER CONSUMPTION:
AirSENCE has an average power consumption of 6W and can be operated using solar power or external battery.
MODULAR DESIGN:
AirSENCE has plug & play sensor design and sensors can be replaced in the field in minutes.
WEATHERPROOF ENCLOSURE:
AirSENCE has an IP65 rated weatherproof polycarbonate enclosure which allows installation in virtually any climate.
MULTIPLE COMMUNICATION MODES:
AirSENCE offers 3 different communication modes including Wi-Fi, Local Area Network (LAN) and 4G-LTE GSM.
DATA STORAGE & ACCESS:
Every AirSENCE device stores data on a cloud server with web-browser based secure access having individual user-ID and password. User can access the data anytime from anywhere using any-device like PC, Laptop, Tablet or even using Smartphone.
